- Product Details
ZS Machinery Dot Peen Marking Machine is a professional solution for permanent marking on metal parts, designed for industrial identification, traceability, and coding applications.
Using high-frequency pin impact technology, the machine forms characters and graphics by continuously striking the surface, ensuring deep, clear, and long-lasting marks.
We provide a complete product range including electric, pneumatic, and industrial-grade dot peen marking systems to meet different production environments, from small workshops to automated production lines.
Electric dot peen marking machine
Product Structure and Working Principle
The dot peen marking machine uses a hardened marking pin driven by either electric or pneumatic force.
During operation, the pin impacts the surface at high speed, forming dense dot patterns that create text, numbers, logos, or codes.
This mechanical marking method ensures that the marking remains visible even after painting, coating, or long-term use.
Product Range
ZS Machinery offers a full range of dot peen marking machines to cover different applications.
1.Electric Dot Peen Marking Machine
Compact structure, no air compressor required, easy installation
Lower noise and suitable for indoor working environments
Best for light-duty marking on aluminum, brass, and thin metal parts
Widely used for nameplates, tags, and small components
2.Pneumatic Dot Peen Marking Machine
Driven by compressed air, providing stronger impact force
Capable of deep marking on steel, stainless steel, and hard materials
Stable performance in heavy-duty industrial environments
Ideal for automotive, machinery, and structural components
3.Industrial Dot Peen Marking Machine
Heavy-duty structure designed for continuous operation
Can be integrated into production lines or automated systems
Supports large workpieces and batch processing
Suitable for high-volume manufacturing environments

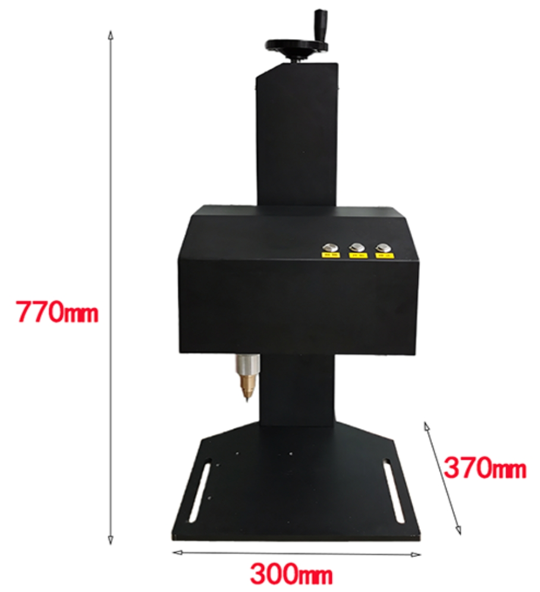

Industrial Dot Peen Marking Machine
Key Features
Deep and Permanent Marking
The marking is physically engraved into the material, ensuring it will not fade, peel, or disappear over time.
High Reliability in Harsh Environments
The machine operates reliably in conditions with dust, oil, vibration, and temperature variation.
Wide Material Compatibility
Suitable for steel, stainless steel, aluminum, copper, and other metal materials.
Flexible Marking Content
Supports text, serial numbers, logos, VIN codes, and Data Matrix codes.
Stable Industrial Performance
Designed for long working hours with consistent marking quality.
Standard Marking Areas
To meet different product sizes, the machine is available in multiple standard marking ranges:
95 x 25 mm
125 x 30 mm
140 x 40 mm
These sizes cover most industrial marking requirements. Custom sizes can be discussed based on specific applications.
Control System Options
Different control systems are available to match user habits and production requirements:

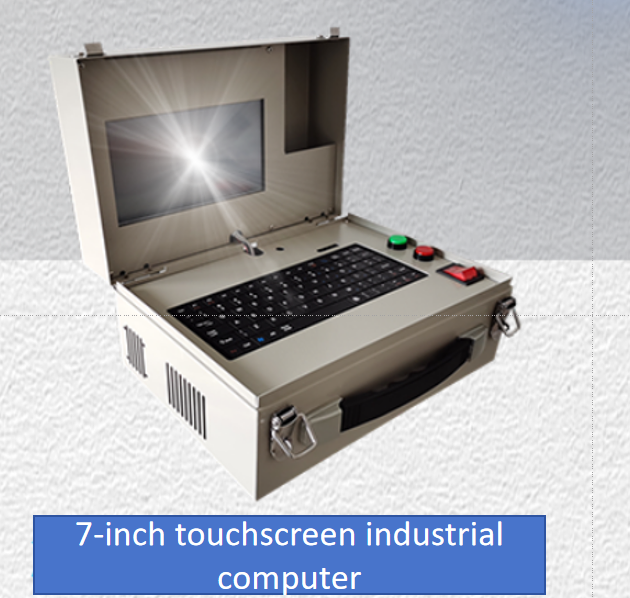

Industrial PC control system
Suitable for complex marking tasks, data management, and integration with factory systems
Idustrial Control Computer

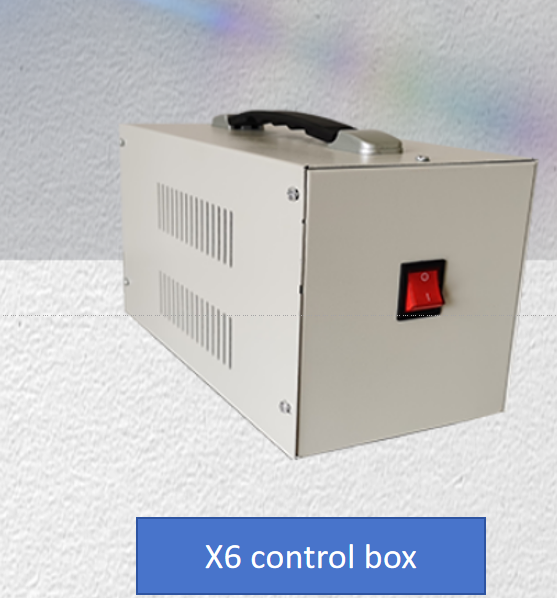

X6 controller
Compact, integrated control box with simple operation, ideal for standard marking applications
X6 Control Box
Typical Application Scenarios
Dot peen marking machines are widely used in industries requiring durable and traceable marking.
Automotive industry
Marking chassis numbers, engine parts, and metal components
Machinery manufacturing
Marking gears, bearings, and structural parts
Metal processing
Marking flanges, valves, pipes, and steel components
Tools and hardware
Marking serial numbers and product identification
Nameplates and tags
Marking metal plates for equipment and assets
Machine Configuration Highlights
High-strength marking pin with long service life
Precision linear guide structure for stable movement
Industrial-grade controller for reliable operation
Durable frame suitable for continuous industrial use
Optional fixtures for different product shapes
How to Choose the Right Model
Choosing the right dot peen marking machine depends on your application:
If you need simple marking and easy setup, choose electric models
If you need deep marking on hard metals, choose pneumatic models
If you need high efficiency and automation, choose industrial models
Selecting the right marking area depends on the size of your product and marking content
Dot Peen vs Laser Marking vs UV Printer
Technology Comparison Table
| Item | Dot Peen Marking Machine | Laser Marking Machine | UV Printer |
| Working Principle | Mechanical impact marking using a hardened pin | Laser beam alters material surface (engraving/oxidation) | Inkjet printing with UV curing |
| Marking Type | Dot matrix characters | Fine lines, graphics, QR codes | Full-color images and patterns |
| Marking Quality | Industrial, rough texture | High precision, clean and sharp | High-resolution, colorful |
| Permanence | Permanent (physical engraving) | Permanent (material change) | Non-permanent (surface adhesion) |
| Marking Depth | Deep marking (0.1–1 mm or more) | Shallow marking (typically 0.01–0.2 mm) | No depth (surface only) |
| Accuracy | Medium | High | High (visual quality) |
| Speed | Medium | Fast | Medium to slow |
| Noise Level | High (mechanical impact) | Silent | Silent |
| Suitable Materials | Mainly metals | Metals and non-metals (depends on laser type) | Almost all materials (surface printable) |
| Typical Applications | VIN codes, steel parts, heavy components | Electronics, hardware, precision parts | Packaging, branding, decorative printing |
| Environment Adaptability | Strong (dust, oil, harsh conditions) | Moderate (requires cleaner environment) | Sensitive (requires stable conditions) |
| Automation Integration | Available | Highly compatible | Available |
| Large Workpiece Capability | Excellent | Good (with optional axes) | Limited |
Call to Action
ZS Machinery provides reliable and cost-effective dot peen marking solutions for various industrial applications.
Tell us your material, marking content, and production requirements.
We will recommend the most suitable machine configuration for your needs.
