Medical Devices Industry
In the medical device industry, marking is not just identification—it is directly related to patient safety, regulatory compliance, and product traceability.
From surgical instruments to implantable devices, every component must carry clear, permanent, and reliable markings that remain readable throughout its entire lifecycle.
With increasingly strict global regulations, laser marking has become the standard solution for medical device identification.

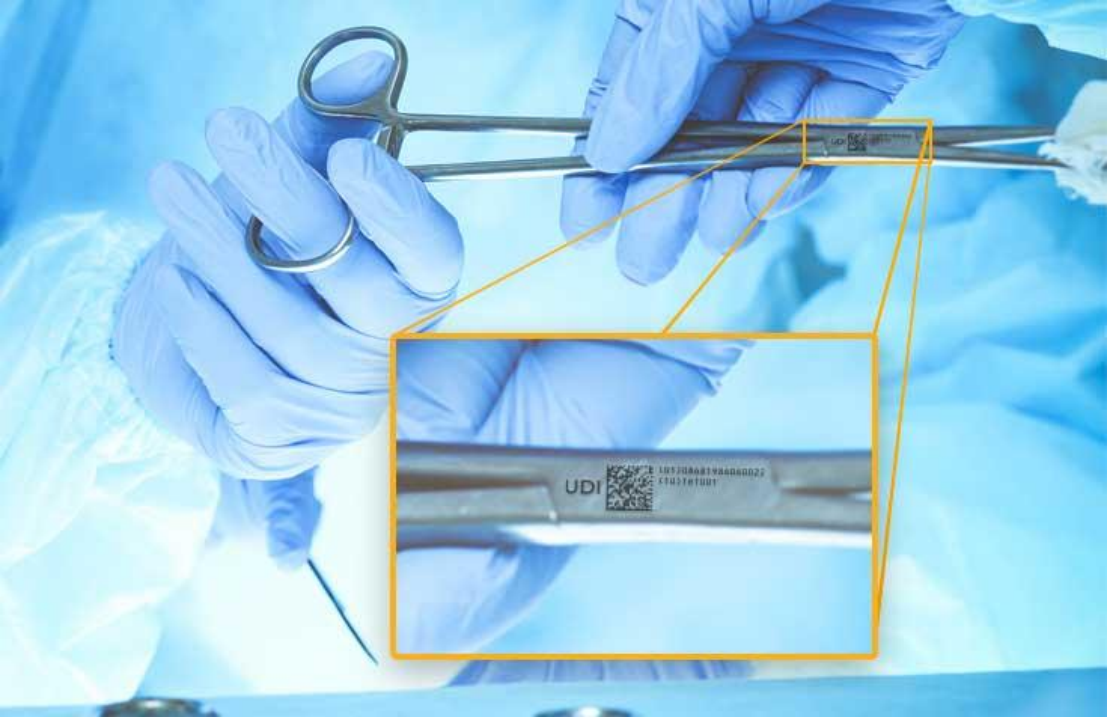

Medical industry marking solution
Why Marking is Critical in Medical Devices
Medical devices operate in highly demanding environments, including:
1.Repeated high-temperature sterilization (autoclaving)
2.Exposure to chemical disinfectants
3.Long-term use inside the human body
This means markings must:
1.Remain permanent and readable for the entire lifecycle
2.Not introduce contamination or affect biocompatibility
3.Support full traceability and compliance
According to regulatory requirements such as FDA UDI, each device must include:
1.Device Identifier (DI)
2.Production Identifier (PI: batch, serial number, expiration date)
3.Machine-readable codes (QR / Data Matrix)
Marking is no longer optional—it is a legal requirement.
Typical Applications in Medical Device Marking
Surgical Instruments
Scalpels, forceps, scissors
Stainless steel surgical tools
Reusable medical kits
Require corrosion-resistant, sterilization-proof markings

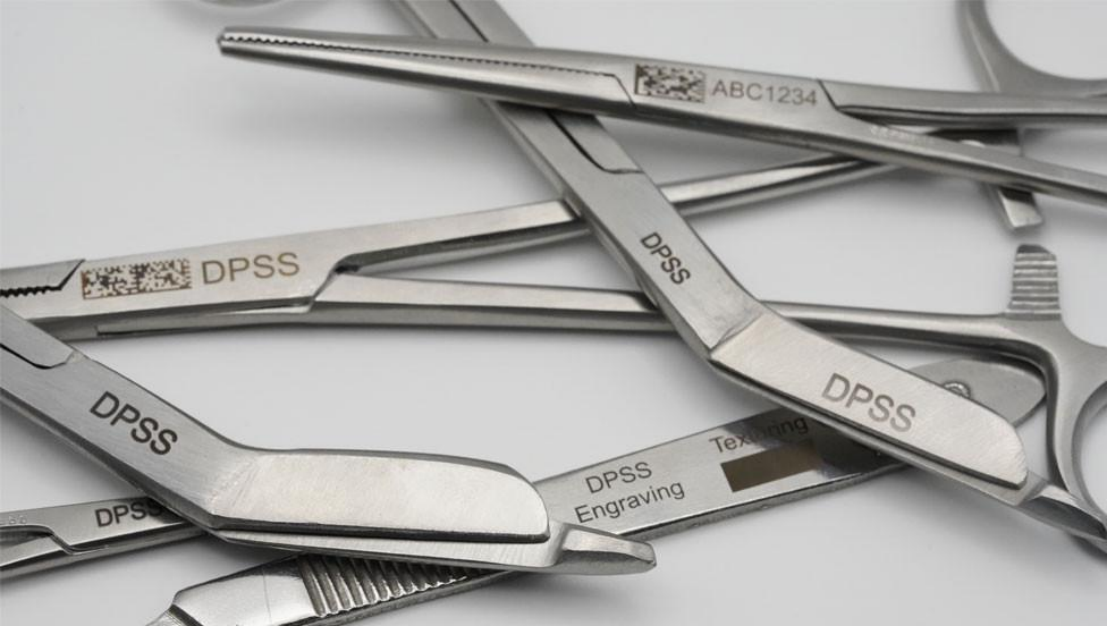

Surgical instrument marking
Implants & Orthopedic Devices
Titanium implants (hip, dental, bone screws)
Permanent identification codes
Anti-counterfeiting markings
Must remain readable inside the human body for years

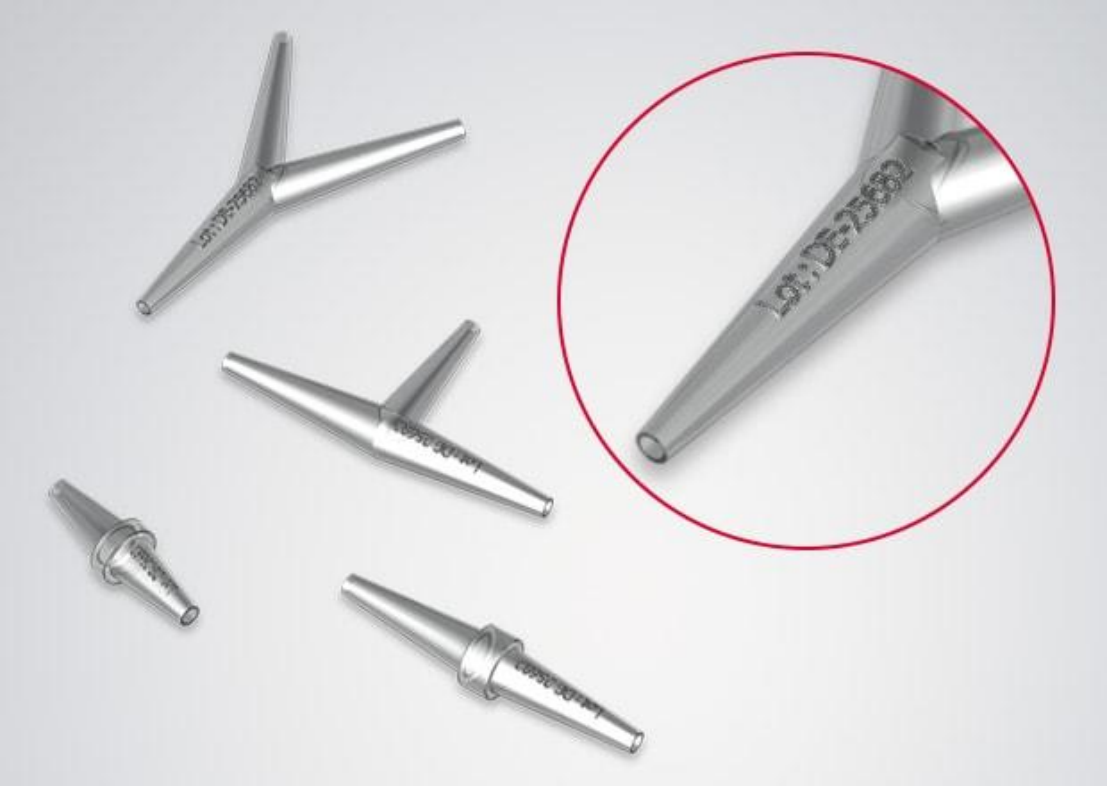

Medical implant marking
Medical Plastics & Consumables
Syringes, catheters, IV components
Pharmaceutical packaging
Disposable medical devices
Require non-damaging, high-precision marking

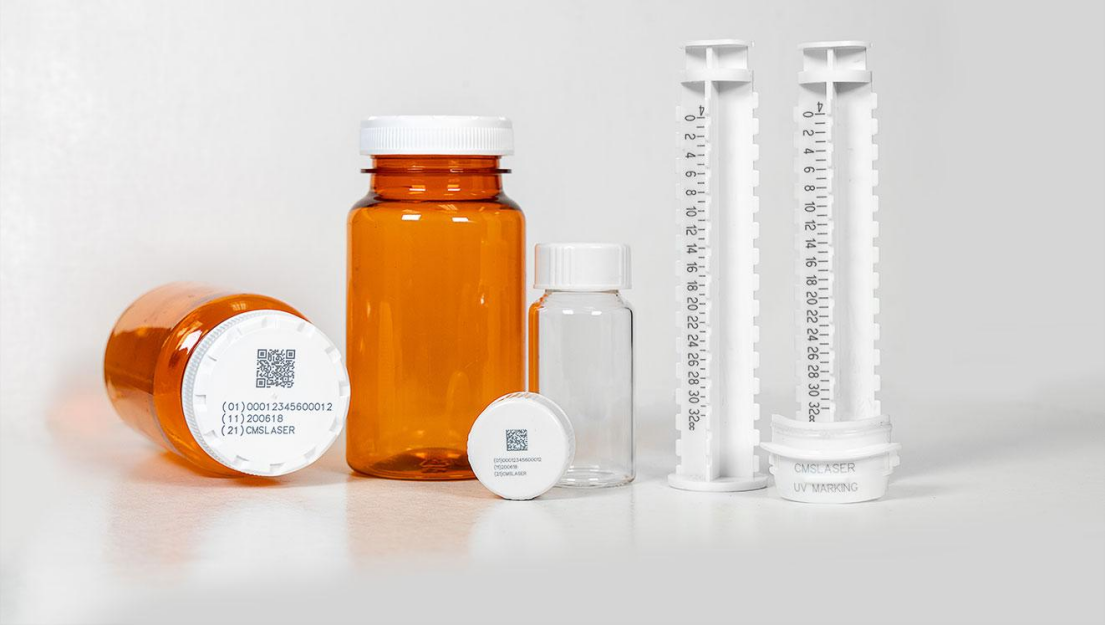

Marking on the surface of medicine bottles
Electronic Medical Devices
Diagnostic equipment
Monitoring devices
Control panels
Need clear, durable, and traceable identification
Key Challenges in Medical Device Marking
Medical marking is one of the most demanding applications in manufacturing:
1.Sterilization Resistance
Devices undergo:
Steam sterilization (134°C)
Chemical cleaning
Markings must survive thousands of cycles without fading (HeatSign)
2.Corrosion & Surface Integrity
Improper marking can:
Damage protective oxide layers
Cause rust or contamination
Especially critical for stainless steel instruments
3.Biocompatibility
No inks, chemicals, or residues allowed
Surface must remain smooth (no bacteria traps)
Laser marking avoids contamination risks
4.Micro Precision Requirements
Extremely small marking areas
UDI codes can be <1 mm
Requires ultra-fine laser control
5.Regulatory Compliance
Manufacturers must comply with:
FDA UDI (USA)
EU MDR
ISO 13485
Non-compliance can lead to recalls or legal issues
Recommended Marking Technologies
In the medical industry, Fiber Laser Marking Machines and UV Laser Marking Machines are the two core solutions.
Fiber Laser Marking Machines (Best for Metals)
Ideal for:
Stainless steel (304 / 316L)
Titanium implants
Surgical instruments
Advantages:
High-contrast black annealing marking
Does not damage protective oxide layer
Excellent corrosion resistance
Withstands repeated sterilization
Permanent and wear-resistant
Laser annealing creates marks without removing material, keeping surfaces smooth and hygienic.
UV Laser Marking Machines (Best for Plastics & Glass)
Ideal for:
Medical plastics (catheters, syringes)
Glass containers
Sensitive polymer components
Advantages:
“Cold marking” process (minimal heat impact)
No deformation or micro-cracks
Ultra-fine, high-resolution marking
Maintains material integrity
Especially critical for delicate medical-grade materials

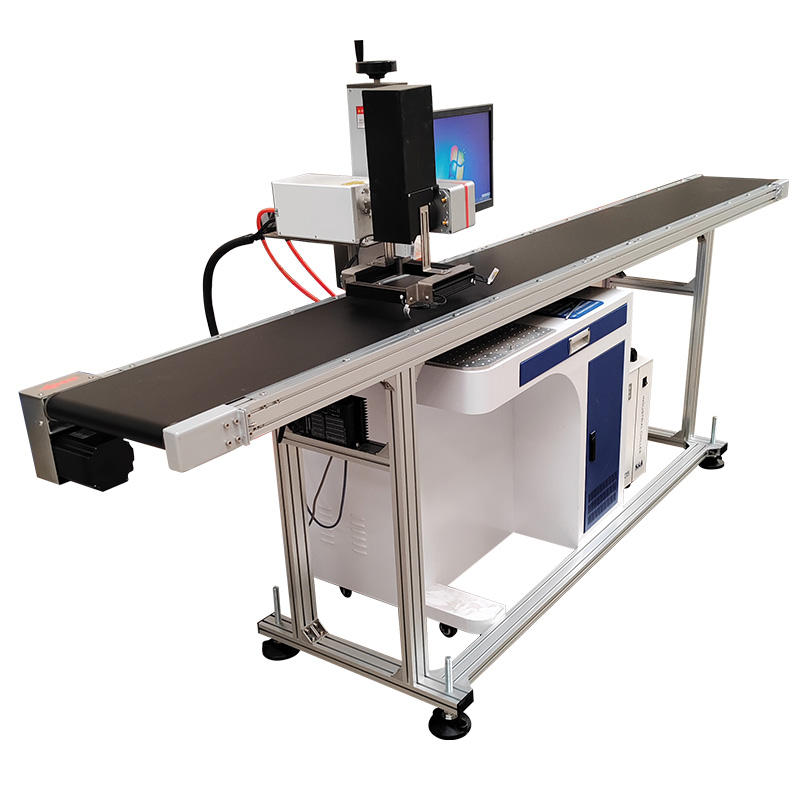

Visual UV Laser Marking Machine
Why Laser Marking is the Industry Standard
Compared with traditional methods (inkjet, labels, engraving):
1.Permanent and tamper-proof
2.Non-contact (no mechanical stress)
3.No consumables or chemicals
4.High precision for micro-marking
5.Fully compliant with UDI regulations
6.Suitable for cleanroom environments
Laser marking is widely considered the “gold standard” for medical device identification
ZS Machinery Solutions for Medical Industry
ZS Machinery provides customized marking solutions tailored to medical applications:
Fiber laser systems for metal instruments and implants
UV laser systems for plastics and glass
High-precision marking for micro components
Support for UDI coding and database integration
Automated solutions for high-volume production
Sample testing and process validation
Contact us
As the medical industry continues to evolve, marking technology must meet ever higher standards of:
Safety
Precision
Compliance
Laser marking has become an essential technology for ensuring:
Full product traceability
Long-term durability
Regulatory compliance
With the right solution, manufacturers can achieve reliable, high-quality, and future-proof marking systems for medical devices.
If you are looking for a reliable marking solution or need professional advice for medical devices, feel free to contact us. Our team is ready to support your project.
