High-Precision CCD Camera Alignment for Industrial Printing
A Vision Positioning UV Printer is an advanced UV printing solution equipped with a CCD visual positioning system, designed to achieve automatic alignment and high-precision printing on pre-printed or irregular objects.
Unlike standard UV printers, this system uses industrial cameras and image recognition technology to detect object position, contours, and existing patterns—ensuring accurate printing even when placement is not perfectly aligned.
Visual UV Printer
What Is Vision Positioning in UV Printing?
Vision positioning is not a separate machine type—it is a functional upgrade that can be integrated into any UV printer model, including flatbed and conveyor systems.
The system works by:
Capturing the object using a high-resolution CCD camera
Identifying reference points, contours, or existing graphics
Automatically correcting position deviations
Executing precise print alignment
This eliminates manual positioning and significantly improves consistency and efficiency.
Key Features of Vision Positioning UV Printer
Automatic Graphic Recognition
The system can automatically detect:
Pre-printed patterns
Logos or outlines
Product edges and shapes
This enables accurate overlay printing without manual alignment.
High-Precision Positioning
With industrial-grade CCD cameras:
Accurate alignment even with slight placement deviation
Ensures perfect match between printed graphics and substrate
Suitable for high-value and precision products
Real-Time Calibration
The system continuously adjusts during operation:
Detects position shifts in real time
Automatically compensates errors
Maintains consistent print quality in batch production
Easy Operation
User-friendly software interface
Minimal operator training required
Reduces labor dependency
Flexible Integration
Vision positioning system can be:
Added to all UV printer sizes and formats
Integrated into automatic production lines
Customized based on specific application requirements

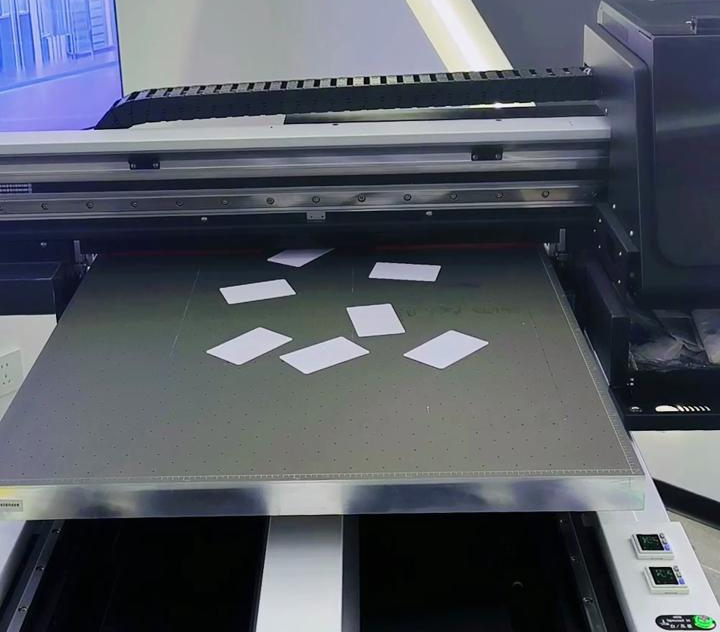

Vision Position UV Printing
How It Improves Your Production
Compared to traditional UV printing, vision positioning provides:
| Function | Standard UV Printer | Vision Positioning UV Printer |
| Alignment | Manual | Automatic |
| Accuracy | Operator-dependent | High precision (camera-based) |
| Efficiency | Medium | High (no manual adjustment) |
| Scrap Rate | Higher | Lower |
| Labor Requirement | High | Reduced |
Typical Applications
Vision positioning UV printers are ideal for applications where precise alignment is critical:
Industrial Products
Nameplates and labels
Automotive parts
Packaging & Branding
Bottle caps and containers
Pre-printed packaging alignment
Logo overlay printing
Irregular or Pre-Printed Items
Products with existing graphics
Items with inconsistent placement
Small parts in batch production
Why Choose Vision Positioning UV Printing?
This solution is especially valuable when:
1.Products cannot be placed perfectly every time
2.Printing needs to align with existing patterns
3.High precision and consistency are required
4.Labor cost and human error must be reduced
It is not just about printing—it is about automating accuracy.
Customization Options
We provide flexible configurations based on your production needs:
Camera resolution options (high-precision industrial CCD)
Single-camera or multi-camera systems
Conveyor integration for automatic feeding
Software customization for specific product recognition
Call to Action
Looking for a More Efficient and Accurate UV Printing Solution?
If your production involves:
Pre-printed materials
Irregular product placement
High-precision alignment requirements
Then a vision positioning system can significantly improve your efficiency and reduce errors.
Share with ZS Machinery:
Your product type
Printing size and material
Production workflow
We will recommend a practical and cost-effective UV printing solution tailored to your application.
FAQs
1. What is the difference between a vision-positioning UV printer and a regular UV printer?
A vision-positioning UV printer adds a CCD camera and image recognition system, which can automatically identify the product position and achieve precise alignment; while a regular UV printer requires manual adjustment, resulting in lower accuracy and efficiency.
2. Can a vision positioning system be added to an existing UV printer?
Yes. Vision positioning is a functional module that can be added or customized according to the equipment structure, but an evaluation of the machine model and space layout is required.
3. What is the achievable accuracy of vision positioning?
Typically, high-precision alignment (±0.1mm or even higher) can be achieved, depending on the camera resolution, product characteristics, and system configuration.
4. Is it suitable for all materials?
The vision positioning system primarily affects the "positioning method," not the printing method, therefore it is suitable for:
Plastics
Metals
Glass
Ceramics
Provided that the material itself is suitable for UV printing.
5. Is special treatment required for the product?
Generally, it's not necessary, but optimization may be needed in the following situations:
Surface is too reflective
Low pattern contrast
Transparent or semi-transparent material
This can be resolved by adjusting the light source or software parameters.
6. Will the vision positioning system affect printing speed?
It won't have a significant impact; on the contrary, in mass production:
Reduce manual alignment time
Improve overall efficiency
Enhance stability
7. Does it support automated production lines?
Yes. The vision positioning system can be integrated with:
Conveyor belts
Automatic loading and unloading systems
Industrial robots
To achieve fully automated production.
8. Which industries is it suitable for?
Widely used in:
Electronics industry
Packaging industry
Automotive parts
Crafts and gifts
Especially suitable for scenarios requiring high-precision registration.
