High-Precision UV Laser Marking with Intelligent Vision Positioning
In modern manufacturing, the demand for high-precision, non-damaging, and automated marking is continuously increasing. Traditional marking systems often struggle with positioning accuracy, product variation, and heat-sensitive materials.
The Vision UV Laser Marking Machine is designed to solve these challenges by integrating UV laser marking technology with intelligent vision positioning and conveyor automation, delivering unmatched precision, consistency, and efficiency.
Visual UV Laser Marking Machine
What is a Vision UV Laser Marking Machine?
A Vision UV Laser Marking Machine is an advanced laser system that combines:
UV laser marking (355nm wavelength)
Machine vision positioning system
Automated conveyor workflow
Unlike traditional laser systems that rely on fixed fixtures, vision-based marking uses industrial cameras and software algorithms to automatically detect product position, orientation, and features, ensuring precise marking even with irregular or randomly placed parts.
How Vision Laser Marking Works
The working process of a Vision Laser Marking system can be divided into several key steps:
1.Image Acquisition
The industrial camera captures real-time images of the product on the conveyor.
2.Feature Recognition
The vision software identifies reference points, contours, or predefined features.
3.Position Calculation
The system calculates offset, rotation, and position data.
4.Laser Alignment & Marking
The UV laser automatically adjusts its marking path and performs high-precision marking.
This process eliminates manual alignment and significantly improves both accuracy and production efficiency.
Why Choose UV Laser Marking?
Cold Processing Technology (355nm UV Laser)
UV laser marking operates through a photochemical reaction, rather than thermal processing. This is a key difference compared to fiber or CO₂ lasers.
Benefits of UV laser marking:
1.No heat-affected zone
2.No material deformation or burning
3.Extremely fine marking capability
4.Ideal for sensitive and high-value materials
This makes UV laser marking the preferred solution for industries where surface quality and precision are critical.

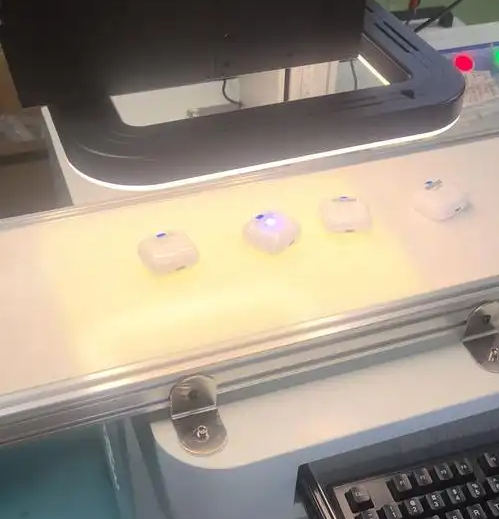

Vision UV Laser Marking Process
Core Advantages of Vision UV Laser Marking Machine
1.High-Precision Vision Positioning
The integrated vision system allows:
Automatic product recognition
Real-time position correction
Accurate marking on randomly placed parts
This is especially valuable for mass production with variable positioning.
2.Ultra-Fine Marking Quality
Thanks to the shorter wavelength (355nm), UV lasers achieve:
Smaller focal spot size
Higher resolution marking
Clear QR codes, barcodes, and micro text
3.Non-Contact & No Damage Processing
UV laser marking does not apply mechanical force or heat stress:
No cracks on glass
No burn marks on plastics
No deformation on thin materials
4.Conveyor Automation for Continuous Production
Equipped with a 1.5-meter conveyor system (customizable):
Supports continuous workflow
Reduces manual handling
Easily integrates into production lines
5.High Stability for Industrial Use
With industrial-grade components such as:
High-speed digital galvo system
Water cooling system with protection
Stable vision control platform
The machine ensures long-term stable operation.
UV vs Fiber vs CO₂ Vision Laser Marking
Understanding the differences is essential for selecting the right solution:
| Type | Laser Wavelength | Processing Type | Suitable Materials | Key Advantage |
| Vision UV Laser Marking Machine | 355nm | Cold processing | Plastics, glass, electronics | No damage, ultra-precise |
| Vision Fiber Laser Marking | 1064nm | Thermal processing | Metals | High speed, deep engraving |
| Vision CO₂ Laser Marking | 10.6μm | Thermal processing | Wood, leather, paper | Non-metal processing |
Conclusion:
If your application requires precision, clean edges, and no thermal impact, UV laser marking is the best choice.
Applications of Vision UV Laser Marking Machine
Electronics & Micro Components
Used for marking:
PCB boards
IC chips
Connectors
UV laser ensures micro-level precision without affecting functionality.
Plastic Products & Packaging
Widely used for:
Cosmetic packaging
Food containers
Medical plastics
It provides clean, high-contrast marks without burning or discoloration.
Glass & Optical Materials
Suitable for:
Glass bottles
Lenses
Optical components
UV marking delivers crack-free, high-quality results.
Medical Devices
Used for:
Surgical tools
Medical packaging
Traceability marking
UV marking ensures hygienic, non-contact processing.
High-End Consumer Products
Applications include:
Electronic housings
Brand logos
Decorative marking
Perfect for products where appearance quality is critical.
For the aforementioned industries and products involving small workpieces requiring batch marking, visual ultraviolet laser marking machines are suitable.
Why Choose ZS Machinery Vision UV Laser Marking Machine?
Choosing the right supplier is just as important as choosing the right machine.
ZS Machinery focuses on precision marking solutions, combining technical expertise with strict quality control.
Proven Industry Experience
With over a decade of experience in marking technologies, we understand real production challenges and provide practical solutions.
Strong Quality Control
Every machine is carefully tested to ensure:
Stable laser output
Accurate vision positioning
Long-term reliability
Customized Solutions
We provide tailored configurations including:
Conveyor customization
Vision system adjustment
Fixture design
Reliable After-Sales Support
Remote technical support
Operation training
Long-term service assistance
Optional Configurations
Automatic loading/unloading system
Advanced vision recognition system
Multi-station conveyor design
Custom fixtures for specific products
FAQ – Vision UV Laser Marking
Q1: What materials are suitable for UV laser marking?
Plastics, glass, ceramics, and sensitive electronic components.
Q2: Is UV laser marking permanent?
Yes, it creates permanent marks by altering the material surface.
Q3: Can the system handle irregular products?
Yes, the vision system automatically detects and adjusts positioning.
Q4: Is it suitable for mass production?
Absolutely. With conveyor integration, it supports continuous industrial production.
Conclusion And Call To Action
The Vision UV Laser Marking Machine is not just a marking device—it is a complete intelligent marking solution designed for modern manufacturing.
By combining:UV laser precision,vision positioning and automation capability,it delivers superior performance in industries where quality, accuracy, and efficiency are essential.
If you are looking to upgrade your production with high-precision, non-damaging marking technology, this system is the ideal choice.
Contact ZS Machinery to get your own vision UV marking solutions.
