The 3D Laser Marking Machine is designed to overcome the limitations of traditional 2D laser marking systems. With dynamic focus control and a 3D galvanometer system, it enables precise marking, engraving, and texturing on curved, uneven, and complex surfaces.

Compared with standard fiber laser marking machines, this system not only supports flat surface marking but also delivers consistent, high-quality results across varying heights and geometries—making it ideal for modern industrial applications.

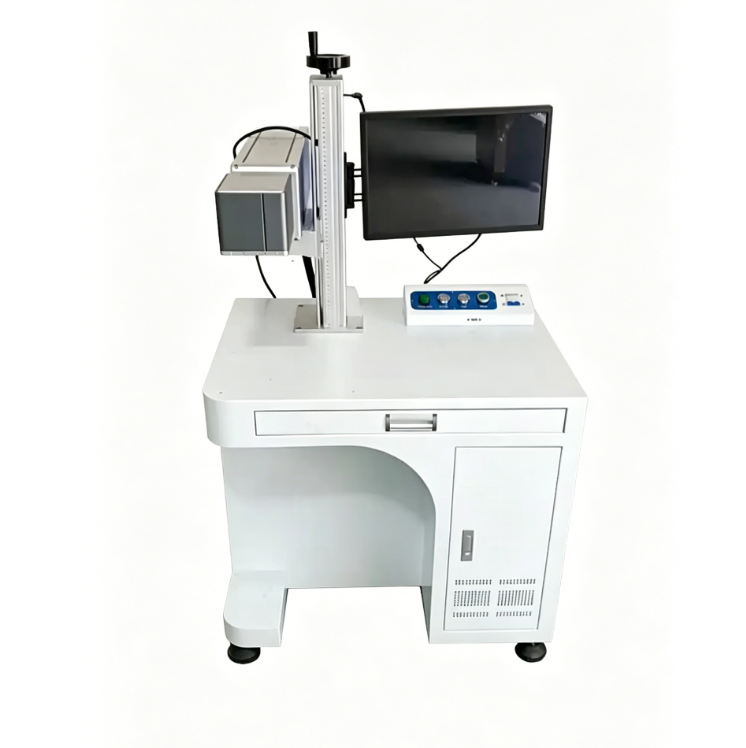

3D Laser Marking Machine

What is a 3D Laser Marking Machine?

A 3D laser marking machine is an advanced laser system that can automatically adjust the focal length (Z-axis) during processing.This allows the laser beam to stay in focus even when working on:

Curved surfaces

Sloped parts

Stepped structures

Irregular geometries

Unlike traditional systems, it ensures uniform marking quality across the entire workpiece, regardless of height variation.

Key Features of 3D Laser Marking Machine

1.Dynamic Focus Control (True 3D Marking)

Equipped with a 3D galvo scanning system, the machine dynamically adjusts the focal point in real time, ensuring sharp and consistent marking on complex surfaces.

2.Perfect for Curved & Irregular Surfaces

Easily process:

Cylindrical parts

Spherical surfaces

Inclined planes

Complex molded components

No need for repositioning or multiple setups.

3.Enhanced Deep Engraving Capability

Supports layer-by-layer engraving, enabling:

Deep engraving on metal

3D relief patterns

Mold texturing

Compared with standard 2D systems, engraving depth and consistency are significantly improved.

4.Large Area Marking with Distortion Compensation

3D systems can automatically correct edge distortion, allowing:

Larger marking areas (200mmx200mm,300×300mm)

Uniform results across the entire field

5.High Precision & Stability

Fine laser spot quality

Stable beam output

High repeatability

Ensures clean details even for complex graphics and micro-marking.

6.Intelligent 3D Software Support

Supports 3D model import (STL format)

Automatic path planning

Z-axis compensation

Compatible with common design software

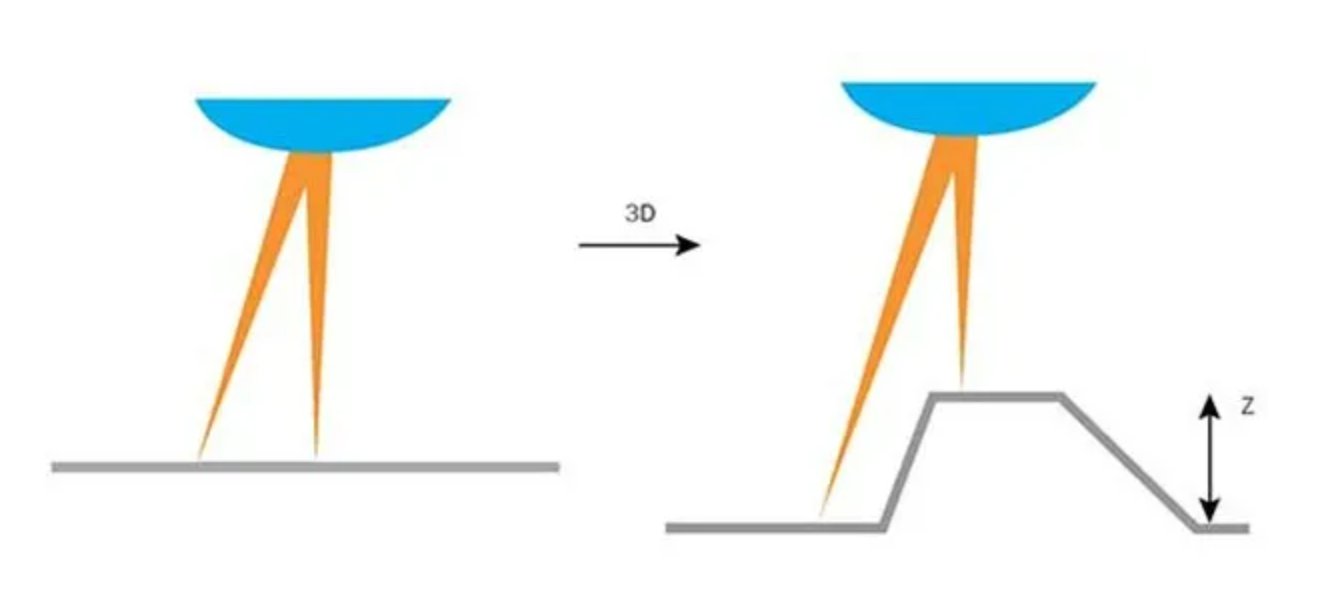

3D Marking VS 2D Marking

Applications of 3D laser marking machine

The 3D laser marking machine is widely used in industries that require high-precision laser marking, deep engraving, and processing on curved or complex surfaces. With its dynamic focus capability, it enables consistent results across uneven geometries that traditional systems cannot handle.

Mold Industry

The mold industry is one of the most important application fields for 3D laser marking.

Typical uses include:

Mold engraving for identification, logos, and traceability

Texture processing (leather patterns, matte finishes, micro-structures)

Deep engraving for cavities and detailed structures

Serial number and code marking on complex mold surfaces

Thanks to its ability to perform 3D engraving on uneven steel surfaces, the machine significantly improves efficiency compared to CNC machining or EDM for fine textures.

Automotive Parts

Automotive components often feature curved geometries, irregular structures, and strict durability requirements, making 3D laser marking an ideal solution.

Applications include:

Engine components marking (codes, traceability data)

Curved metal parts marking without distortion

Structural components engraving with high contrast

VIN codes, QR codes, and permanent identification

The non-contact process ensures no mechanical stress or deformation, which is critical for automotive-grade parts.

Electronics & 3C Products

In the electronics industry, precision and aesthetics are equally important. 3D laser marking enables fine, high-resolution marking on complex housings and small components.

Typical applications:

Mobile phone housings (curved or 3D surfaces)

Electronic enclosures and casings

Micro-marking on precision components

Brand logos, barcodes, and QR codes

It ensures clean, permanent marking without damaging sensitive components, making it ideal for high-end consumer electronics.

Hardware & Tools

Hardware products often come with irregular shapes, varying heights, and complex structures, where traditional 2D marking fails.

Applications include:

Irregular metal parts marking

Tools and accessories engraving

Industrial components identification

Batch marking on uneven surfaces

The 3D system allows consistent marking quality across different positions, improving both efficiency and product appearance.

Jewelry & Custom Products

For personalized and high-value items, 3D laser marking offers unmatched flexibility and detail.

Applications include:

Rings and bracelets (curved surface engraving)

Decorative patterns and artistic engraving

Personalized text, names, and symbols

Relief engraving and 3D effects

The ability to perform fine engraving on small curved surfaces makes it especially suitable for customization businesses and premium products.

Why 3D Laser Marking is Critical in These Applications

Across all these industries, the key advantages of 3D laser marking include:

Ability to handle curved and uneven surfaces

Support for deep engraving and texture processing

High precision and repeatability

Non-contact processing (no damage to parts)

Improved automation and production efficiency

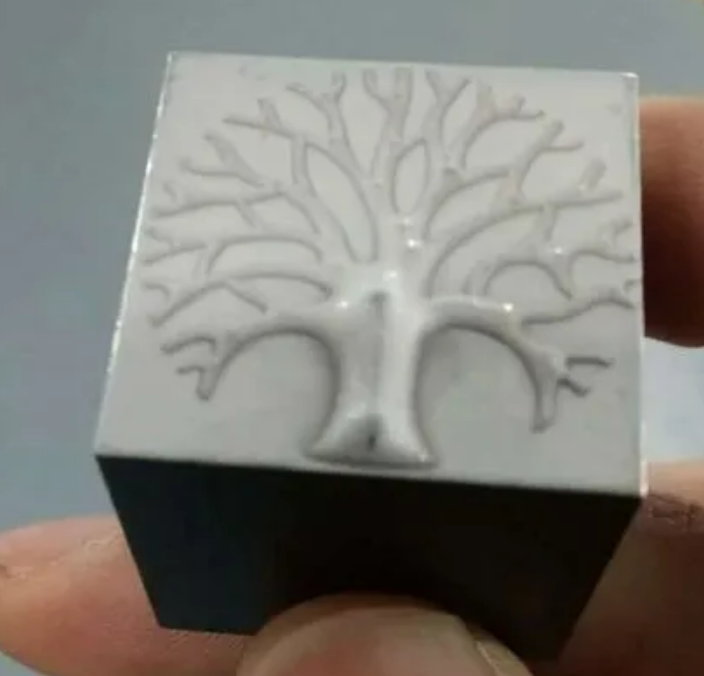

3D Laser Marking Samples

2D vs 3D Laser Marking Machine

Why Choose ZS Machinery

ZS Machinery focuses on laser marking and engraving solutions with deep experience in industrial applications.

We don’t just provide machines—we deliver complete, optimized solutions:

Precision system calibration before delivery

Optimized parameters for different materials

Stable and reliable component selection

Strict quality inspection process

Real application-based testing

All machines come with:

At least 1-year warranty

Professional technical support

Remote guidance & training

Get Your Customized Solution

Every application is different. Choosing the right 3D laser marking machine depends on:

Material type

Surface shape

Required engraving depth

Production volume

Contact ZS Machinery today and tell us your application requirements.
We will provide you with a tailored solution to maximize your efficiency and product quality.
