The cabinet handheld fiber laser marking machine is a versatile marking solution that combines the stability of a traditional cabinet system with the flexibility of a portable handheld marking head.Unlike standard cabinet laser marking machines, this model allows the operator to remove the marking head and perform marking directly on large, heavy, or non-movable workpieces.

It is ideal for industries requiring both precision marking on small parts and flexible marking on oversized components.

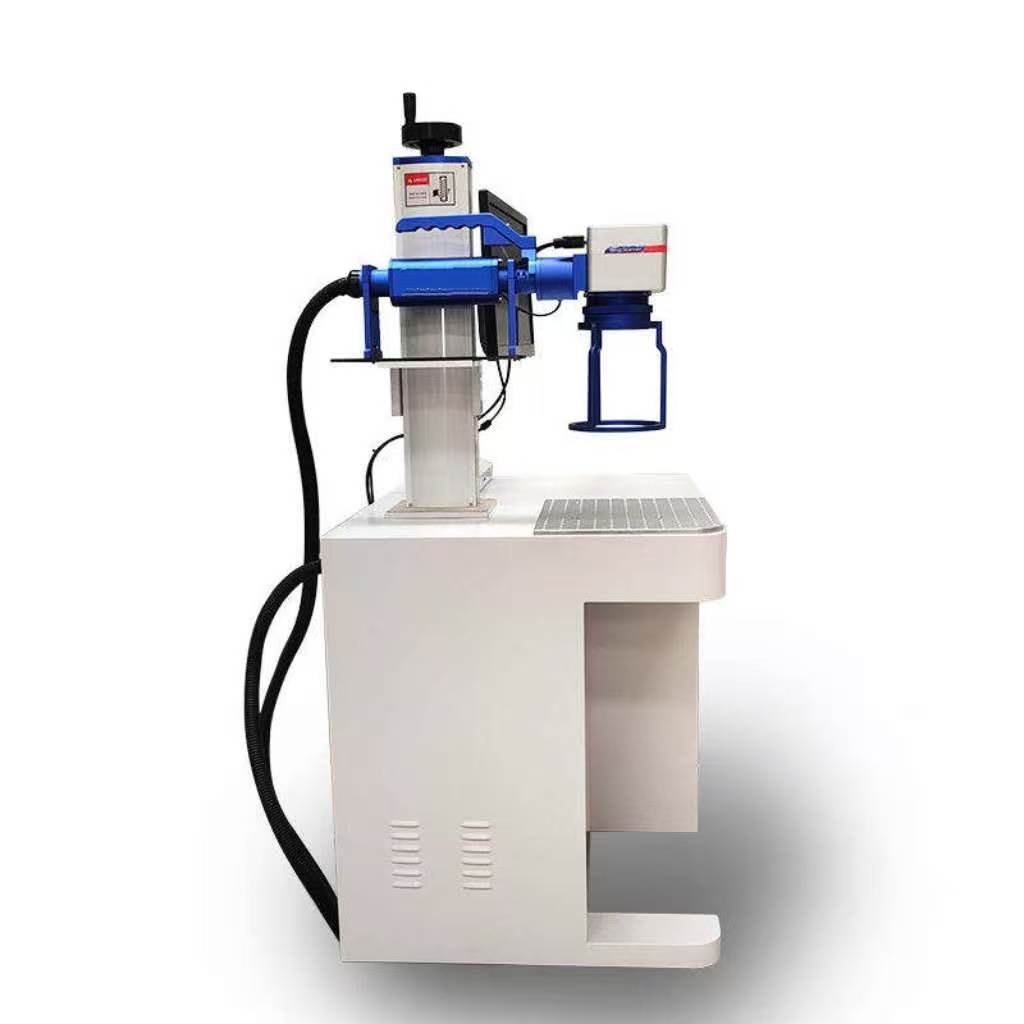

Cabinet-style handheld dual-purpose fiber laser marking machine

What Is a Handheld Fiber Laser Marking Machine?

This system is based on fiber laser technology, which uses a high-energy laser beam to create permanent marks on material surfaces.With the added handheld marking head, the laser beam can be delivered through a flexible structure, allowing operators to mark:

Large metal parts

Installed equipment

Irregular or hard-to-position objects

This makes it a hybrid solution between stationary marking and on-site marking.

Key Features & Advantages

Dual-Mode Operation (Cabinet + Handheld)

This machine works both as a traditional cabinet marking system and a handheld marking device.
Improves flexibility and reduces the need for multiple machines

Ideal for Large & Heavy Workpieces

The detachable handheld head allows direct marking without moving the product.

Saves labor and increases efficiency

High Precision Fiber Laser Technology

Equipped with high-quality fiber laser sources such as MAX or Raycus.

Ensures clear, permanent, and high-speed marking

Compact Marking Area for Precision Work

Standard marking area: 100 × 100 mm

Perfect for fine marking, logos, serial numbers, QR codes

Flexible Movement System Options

Two configuration options available:

Three-section hydraulic arm → Stable, precise positioning

Flexible cable (portable fiber delivery) → Maximum freedom of movement

Low Maintenance & No Consumables

Fiber laser technology requires no ink or additional materials.
Reduces long-term operating costs

Applicable Materials

This machine is suitable for marking a wide range of metal materials, including:

Stainless steel

Aluminum

Carbon steel

Brass

Copper

Alloy materials

Some plastic(Need consult us)

It can also mark some coated or treated surfaces.

Application Industries

This machine is widely used in industries such as:

Automotive parts

Metal fabrication

Machinery manufacturing

Tools & hardware

Aerospace components

Construction equipment

Especially suitable for:

Large parts that cannot be moved

Installed equipment marking

On-site industrial marking

Configuration Options

Option 1: Three-Section Hydraulic Arm

Stable and precise positioning

Ideal for repetitive industrial marking

Option 2: Flexible Cable (Handheld Type)

Lightweight and easy to move

Ideal for large-area or on-site marking

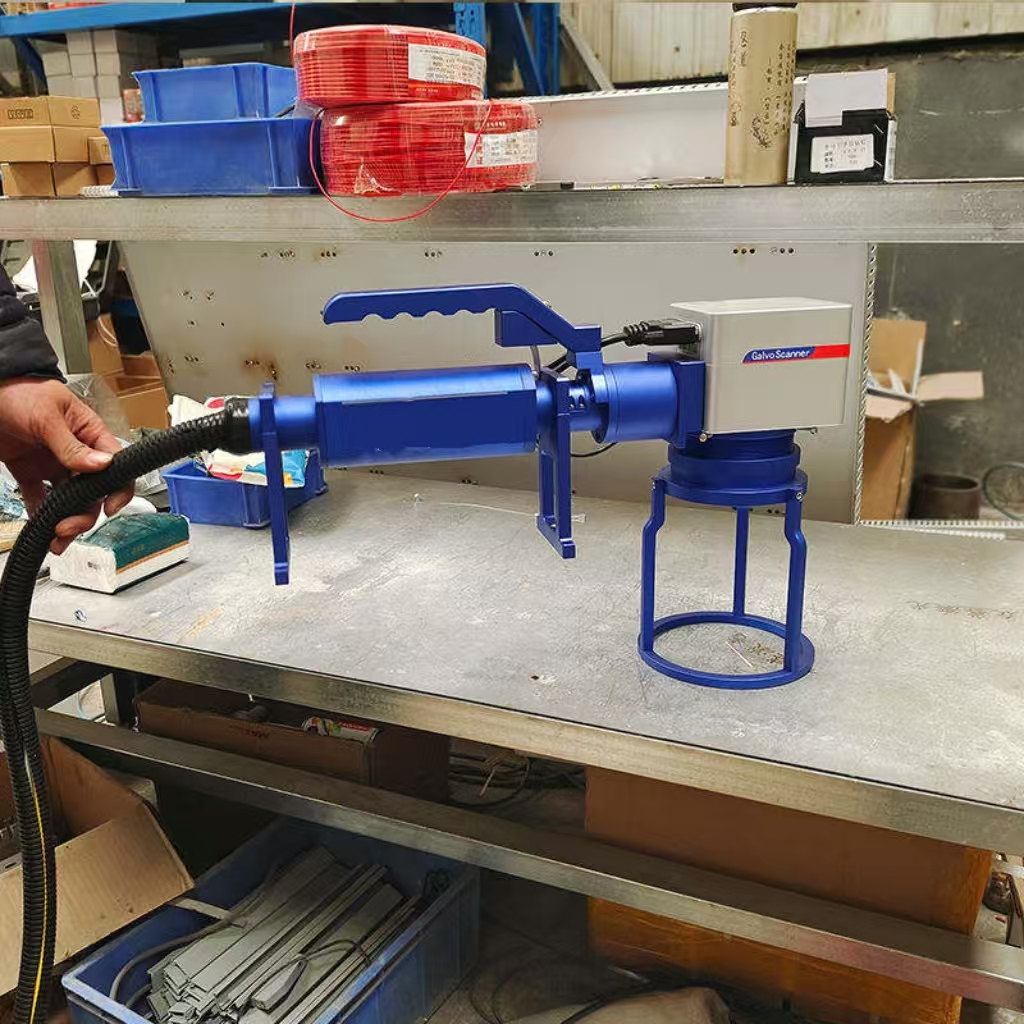

Flexible Cable Handheld Dual Use Fiber Laser Marking Machine

Why Choose ZS Machinery’s Machine?

At ZS Machinery,Our philosophy is to provide customers with one-stop solutions; therefore, we value innovation and are adept

at integrating multiple technological solutions.This machine Combines two machines in one (stationary + handheld)

Reduces labor and improves efficiency

Ideal for both small parts and large structures

Flexible configuration to match different working environments

In addition, this machine can also be configured with rotary fixtures, making it flexible for various scenarios. If marking of irregularly shaped parts is involved, we can help provide specialized fixtures to meet your marking needs.

Get a Quote

Looking for a flexible and efficient marking solution for both small parts and large structures?

Contact us today to receive:

Professional configuration advice

Free sample marking

Tailored solution for your application

Technical Specifications

What is the difference between this machine and a standard cabinet laser marking machine?

A standard cabinet laser marking machine operates with a fixed marking head, requiring all workpieces to be placed inside the marking area. This limits its use to small or medium-sized parts.

This model integrates a detachable handheld marking head, allowing direct marking on large, heavy, or already installed components.

In practical terms:

Standard cabinet → suitable for batch marking of small parts

This machine → suitable for both batch work and on-site marking of large structures

What materials can this machine mark?

This fiber laser marking system is primarily designed for metal materials, including:

Stainless steel

Aluminum

Carbon steel

Brass and copper

Alloy metals

It can also mark certain coated or treated surfaces, such as anodized aluminum or painted metals.

How do I choose the right laser power?

The power selection depends on your marking depth, speed, and production requirements:

20W–30W → Ideal for surface marking, logos, serial numbers, and fine details

50W → Suitable for deeper engraving and higher efficiency

100W → Recommended for high-speed production or deep marking on harder metals

If you're unsure, we can recommend the most suitable configuration based on your material and application.

Does handheld operation affect marking accuracy or quality?

No. The laser beam quality remains consistent because it is generated by a stable fiber laser source.

However, marking quality depends on maintaining the correct focal distance.

For this reason:

The hydraulic arm option provides better stability for precision tasks

The flexible cable option offers more freedom for large or irregular parts

Is the handheld marking head easy to operate?

Yes. The handheld marking head is designed for ergonomic use and controlled movement.

Operators can quickly adapt to the system with minimal training, especially for tasks such as:

Large part marking

On-site identification

Re-marking or repair work

What is the difference between the hydraulic arm and the flexible cable option?

Three-section hydraulic arm

→ Provides stable support and precise positioning

→ Suitable for repetitive or semi-fixed marking tasks

Flexible fiber cable delivery

→ Allows maximum mobility and reach

→ Ideal for large, complex, or hard-to-access workpieces

The choice depends on whether your priority is stability or flexibility.

Can this machine replace a portable laser marking machine?

Yes, in most cases.

This system offers the same flexibility as a portable marking solution, while also providing a full cabinet workstation for standard marking tasks.It effectively combines two systems into one, reducing equipment investment.

But if you need to do outdoor working,it's better to use portable marking machine.

Can the machine be customized for specific applications?

Yes. The system can be customized based on your production needs, including:

Arm or cable configuration

Marking fixtures and worktables

Integration with production lines

We also offer free sample testing to verify marking results before purchase.
