The Denim Laser Engraving Machine is an industrial CO₂ laser processing system designed for jeans, denim garments and other textile materials.It can create a wide range of denim finishing effects, including whisker effects, fading, worn patterns, decorative graphics, logos, perforation and cutting.

Unlike a conventional desktop laser engraver, this system is designed for large-area garment processing and can be customized with a CO₂ RF laser source, dynamic galvanometer scanning, large working areas, conveyor or shuttle tables, projection or vision positioning, industrial fume extraction and automated production functions.

The complete system can be configured according to the garment size, desired laser effect, production volume and automation requirements.

What Is a Denim Laser Engraving Machine?

A denim laser engraving machine is an industrial laser system specifically designed to process jeans, denim fabric and other textile materials.Instead of using mechanical abrasion or manually creating patterns on the garment, the laser digitally removes or modifies the surface of the fabric to produce controlled visual effects.Depending on the material and laser parameters, the machine can produce:

• Whisker effects
• Fading effects
• Worn effects
• Vintage effects
• Decorative patterns
• Logos
• Text
• Graphics
• Perforation
• Hollowing
• Cutting

The machine is controlled by software, allowing the design and processing parameters to be changed without making mechanical tools or templates.For industrial production, the laser system can also be integrated with a conveyor, shuttle table, projection system, vision positioning and automatic production equipment.

Denim Laser Engraving Machine

Why Use Laser for Denim Processing?

Traditional denim finishing can involve manual abrasion, chemical treatment, washing and other processes to create different visual effects.Laser processing provides a digital alternative for many of these applications.

1.Digital Pattern Control

A digital design can be loaded directly into the laser software.Operators can easily change:

• Whisker patterns
• Fading areas
• Logos
• Text
• Decorative graphics
• Customized designs

This makes laser processing suitable for both standard production and customized fashion products.

2.Consistent Processing

Once suitable laser parameters have been developed, the same design can be reproduced on multiple garments with a more consistent processing method.

The laser follows the programmed digital pattern rather than relying on manual abrasion.

3.Flexible Customization

Changing the design normally only requires changing the digital file.This is useful for:

• Fashion customization
• Small-batch production
• Personalized jeans
• Brand logos
• Limited-edition products
• Custom denim jackets

4.Reduced Manual Processing

Laser processing can automate part of the surface-finishing process, reducing the amount of repetitive manual work required for certain denim effects.The actual level of automation depends on the machine configuration and production process.

How Does a Denim Laser Engraving Machine Work?

The basic working process combines a CO₂ laser, scanning system, working table and exhaust system.

1. Place the Jeans or Denim

The garment is placed flat on the working platform.Depending on the production requirements, the machine can use:

• Flat working tables
• Conveyor tables
• Shuttle tables
• Customized fixtures

For larger production environments, conveyor or shuttle systems can reduce loading and unloading time.

2. Position the Garment

Correct positioning is important because the design needs to be applied to a specific area of the garment.Different positioning solutions can be selected according to the application:

• Red-light positioning
• Projection positioning
• Camera vision
• Customized fixtures

For complex garment designs, projection or vision systems can help operators position the laser pattern more efficiently.

3. Load the Design

The required design is imported into the laser software.Depending on the selected control system, common graphic formats may include:

• AI
• DXF
• PLT
• BMP
• JPG
• PNG
• Other supported vector or image formats

The exact supported formats depend on the software configuration.

4. Set the Processing Parameters

The laser parameters are selected according to the denim material and required effect.Important factors include:

• Laser power
• Scanning speed
• Frequency
• Focus
• Line spacing
• Number of passes
• Processing pattern

Different denim colors, dyes, fabric weights and compositions can respond differently to the laser, so sample testing is recommended.

5. Laser Processing

The CO₂ laser scans the programmed design across the denim surface.

By controlling the laser energy, different levels of material modification can be produced, from light surface fading to stronger material removal, perforation or cutting.

6. Exhaust and Filtration

Laser processing denim produces smoke, fumes and fabric residues.An industrial exhaust system is therefore an important part of the machine.The extraction configuration can be selected according to the laser power, working area and production environment.

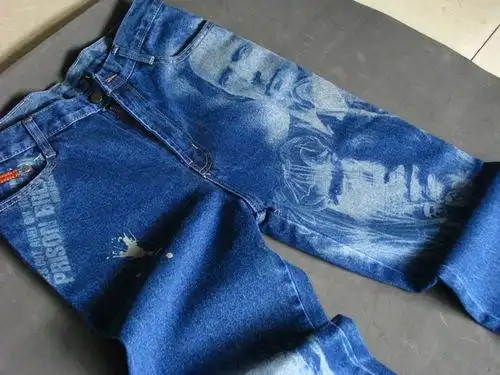

Laser engraving pattern

Denim Laser Engraving Effects

One of the main advantages of laser processing is the ability to create different visual effects through digital control.

Whisker Effects

Whisker effects are one of the recognizable finishing styles used on jeans.The laser can create programmed lines and patterns around areas such as the upper thigh and other garment sections.The design can be changed digitally for different styles.

Fading Effects

Laser energy can selectively modify the dyed surface of denim to create lighter areas.By controlling the processing parameters, different levels of contrast can be developed.

Worn and Vintage Effects

Laser processing can create localized worn or aged appearances without manually treating every area.This can be used for fashion designs that require controlled vintage effects.

Destroyed Effects

Higher laser energy or repeated processing can create stronger material removal and distressed effects.The exact appearance depends on the denim composition and processing parameters.

Pattern Engraving

The machine can process digital graphics, patterns and decorative designs.This allows manufacturers to create customized visual elements without producing mechanical templates.

Logo and Text Marking

Brands can use the laser to add:

• Logos
• Brand names
• Text
• Symbols
• Decorative graphics

The same machine can process different designs by changing the digital file.

Laser Perforation

With a suitable configuration, the laser can create small holes or perforated patterns in denim.

This can be used for decorative designs and specialized garment processing.

Laser Cutting

With an appropriate laser power and motion configuration, the machine can also cut denim fabric and create hollow or open designs.

Cutting requirements should be evaluated separately because cutting speed and penetration requirements are different from surface engraving.

Denim Laser Engraving and Laser Cutting

Laser engraving and laser cutting are related but different processes.

Laser Engraving

Engraving mainly changes or removes part of the surface to create a visual effect.Typical applications include:

• Fading
• Whisker effects
• Logos
• Text
• Decorative patterns
• Vintage effects

Laser Cutting

Cutting requires the laser energy to penetrate through the material.This can be used for:

• Perforation
• Hollowing
• Decorative cutouts
• Denim fabric cutting
• Customized patterns

Therefore, a machine configured for both engraving and cutting should be designed according to the required cutting thickness, cutting speed and working area.

Engraving and marking requirements → Optimize for high-speed surface processing.

Cutting requirements → Optimize for penetration, motion control and continuous material removal.

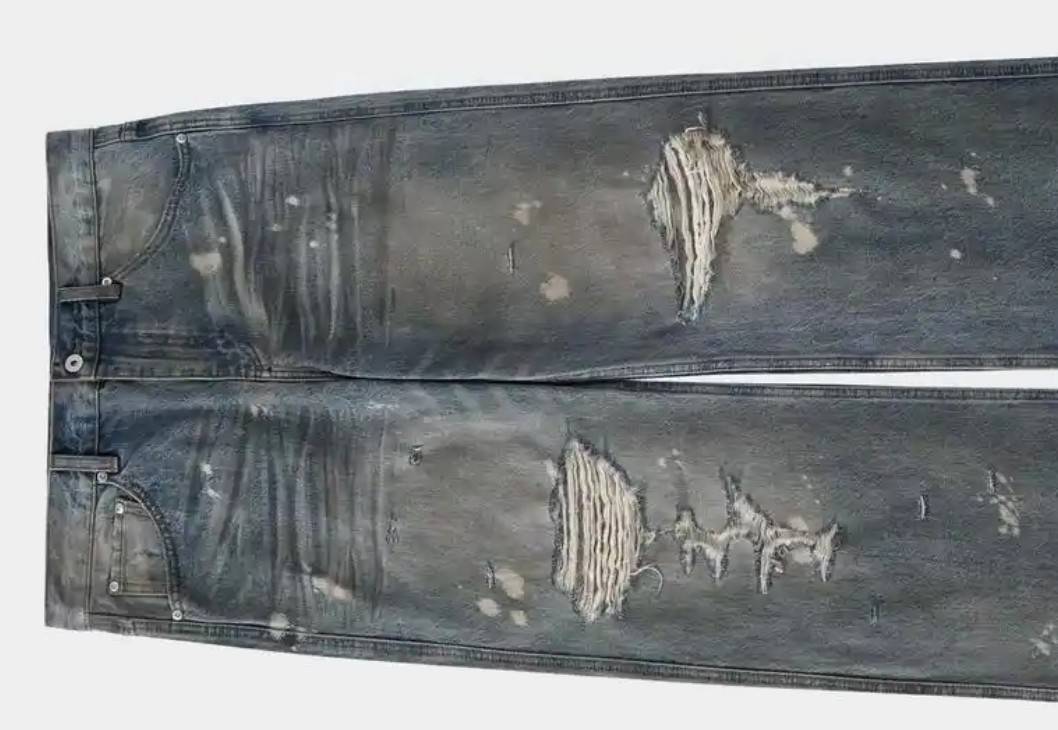

Laser Engraving Whisker Effects

Why Use a CO₂ Laser for Denim?

Denim is a non-metal textile material, making CO₂ lasers a common choice for industrial textile processing.A CO₂ laser operating at around 10.6 μm can efficiently interact with many textile materials and is widely used for applications involving:

• Denim
• Cotton
• Fabric
• Leather
• Textile products
• Other suitable non-metal materials

For industrial denim processing, CO₂ RF laser sources can be combined with dynamic galvanometer systems to provide high-speed scanning over relatively large working areas.The appropriate laser power depends on the desired effect, processing area, material and production volume.

150W, 180W, 300W, 500W or Higher: Which Power Do You Need?

Denim laser systems require much higher power than small desktop laser engravers because the machine may need to process relatively large garment areas at production speed.

150–180W CO₂ Laser

Suitable for applications such as:

• Smaller working areas
• Fashion design
• Custom denim
• Small-batch production
• Light engraving and fading

300W CO₂ Laser

A 300W configuration can provide higher processing efficiency for:

• General industrial denim processing
• Larger engraving areas
• Higher production volumes
• Faster surface processing
• More demanding denim effects

500W and Higher

Higher-power systems can be considered for:

• Large-area processing
• High-volume production
• Stronger material removal
• Perforation
• Cutting applications
• Continuous industrial production

However, laser power should not be selected independently.

The final configuration also depends on:

• Denim type
• Fabric weight
• Dye and color
• Desired visual effect
• Working area
• Processing speed
• Production volume
• Engraving or cutting requirements

Sample testing is recommended before selecting the final laser configuration.

Large Working Area for Denim Processing

Unlike small metal marking machines, denim laser systems often need a large working area because the processing target is an entire garment or a relatively large section of fabric.Possible working areas include:

• 600 × 600 mm
• 900 × 900 mm
• 1000 × 1000 mm
• 1250 × 1250 mm
• 1500 × 1500 mm

The final working area can be customized according to the size of the jeans, jacket, fabric or other textile product.

For example, a system designed primarily for localized jeans effects may require a smaller working field, while large garment processing may require a larger table or conveyor system.

The working area should be selected according to the actual garment dimensions and processing method.

Conveyor or Shuttle Table for Continuous Processing

For production environments, the working table can be designed around the customer’s workflow.

Conveyor System

A conveyor-based design can create a continuous process:

Loading → Positioning → Laser Processing → Moving → Unloading

While one section is being processed, another section can be prepared for the next operation, depending on the machine design.

Shuttle Table

A shuttle table can use two working positions:

Station A: Laser Processing

Station B: Loading / Unloading

The table then switches positions when processing is completed.

This can reduce operator waiting time and improve workflow efficiency.

The best solution depends on the garment size, production volume and factory layout.

Fully Enclosed Denim Laser Engraving Machine

A denim laser processing system is different from a small open-frame hobby machine.Industrial systems can be designed with a fully enclosed processing chamber to improve laser safety, smoke collection and overall production management.The enclosed design can include:

• Enclosed processing area
• Safety doors
• Viewing window
• Laser safety protection
• Industrial exhaust
• Smoke extraction
• Emergency stop
• Optional filtration system

The exact safety configuration depends on the final machine design and applicable local requirements.The enclosure also helps keep smoke and processing residues inside the controlled working area, making it easier to connect the machine with an industrial exhaust system.

Automation Options for Denim Laser Processing

ZS Machinery can customize the machine according to the required production workflow.

Vision Positioning

A camera system can identify the garment position and help locate the programmed processing area.

This can be useful when garments are not placed in exactly the same position every time.

Projection Positioning

A projection system can display the design or processing area directly on the garment.

Operators can quickly adjust the garment position before starting the laser process.

Conveyor Feeding

For higher-volume production, a conveyor system can be integrated into the machine.

Automatic Loading and Unloading

For customers with higher automation requirements, loading and unloading mechanisms can be developed according to the garment and production process.

Dual-Station Processing

A dual-station configuration allows one area to be processed while the operator prepares another area, depending on the machine design.

Production Line Integration

The laser system can also be designed for integration with other production equipment and factory automation systems.

Denim Laser Engraving Applications

The machine can be configured for a wide range of denim and textile applications.

Jeans

Typical applications include:

• Whisker effects
• Fading
• Vintage effects
• Decorative patterns
• Logos
• Perforation
• Customized graphics

Denim Jackets

Large-area graphics, brand designs, fading effects and personalized patterns can be processed on denim jackets.

Denim Shirts

Laser processing can be used for decorative patterns, logos and customized designs.

Denim Skirts and Shorts

The machine can process different garment shapes with suitable positioning and fixture solutions.

Denim Bags and Accessories

Laser engraving can create logos, patterns, text and decorative effects on suitable denim products.

Denim Fabric

For flat denim fabric, the system can be configured with a suitable large working area or conveyor system for continuous processing.

Other Textile Applications

Although the machine is designed around denim processing, the same CO₂ laser technology can be configured for other suitable textile materials.

Potential applications include:

• Cotton
• Canvas
• Fabric
• Leather
• Garments
• Textile accessories

However, material composition and surface treatment can significantly affect laser processing results.

For synthetic fabrics or blended materials, sample testing should be performed before production to evaluate marking quality, edge quality, smoke generation and cutting performance.

Recommended Denim Laser Engraving Machine Configuration

A typical industrial configuration can include:

This configuration is not a fixed standard machine. Laser power, working area, table structure, positioning system and automation can all be customized according to the customer’s application.

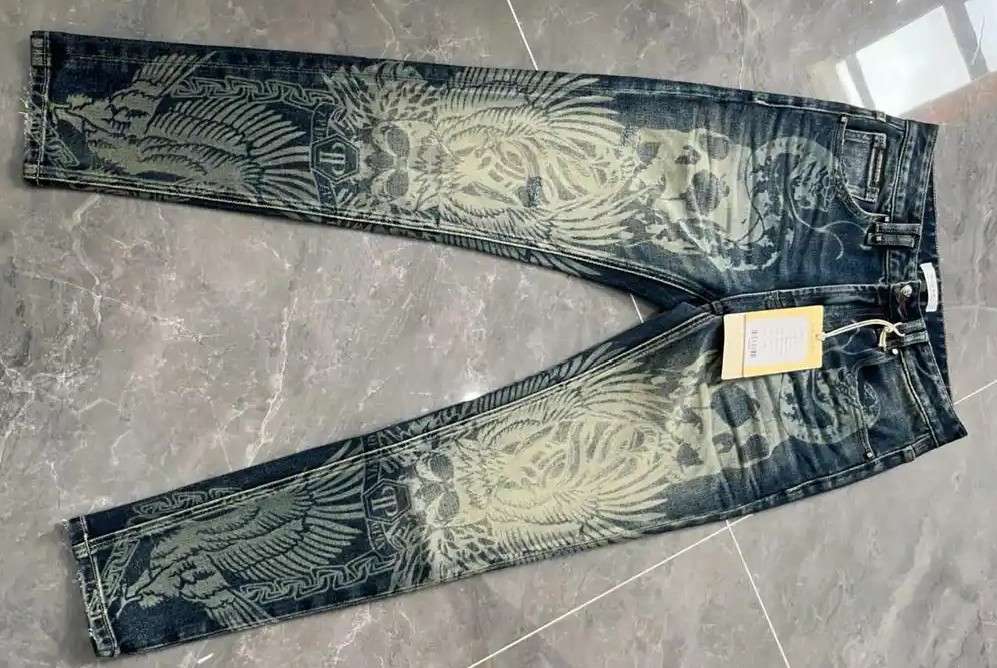

Laser Pattern Engraving

Why Choose ZS Machinery for Denim Laser Processing?

A denim laser system should be designed around the actual garment and production process rather than simply selecting a standard laser machine.

Customized Working Area

We can design the working area according to jeans, jackets, fabric rolls or other textile products.

Customized Laser Power

Different laser powers can be selected according to the required visual effect, processing speed and production volume.

Flexible Feeding Solutions

Conveyor, shuttle table and other feeding configurations can be designed according to the customer’s workflow.

Engraving and Cutting

The system can be configured for denim engraving, fading, perforation and cutting according to the required application.

Vision and Projection

Vision positioning and projection systems can be integrated when precise garment positioning is required.

Industrial Exhaust System

The exhaust system can be configured according to the laser power, processing area and production environment.

Automation Integration

For customers with higher production requirements, the machine can be integrated with automatic loading, unloading, conveyors and other factory automation equipment.

Sample Testing

Different denim fabrics can respond differently to laser energy.

Fabric composition, dye, color, thickness and surface condition can all affect the final result.

For this reason, we recommend testing your actual denim samples before finalizing the machine configuration and production parameters.

How to Choose a Denim Laser Engraving Machine?

Before choosing a machine, consider the following questions.

What Type of Denim Are You Processing?

Different denim fabrics may have different:

• Colors
• Dyes
• Weights
• Compositions
• Surface treatments

These factors can affect the laser result.

What Effect Do You Need?

Do you need:

• Whisker?
• Fading?
• Vintage?
• Worn?
• Pattern engraving?
• Logo marking?
• Perforation?
• Cutting?

The desired effect determines the required laser configuration and parameters.

How Large Is the Processing Area?

Measure the actual garment or fabric size that needs to be processed.

This helps determine the appropriate working area.

How Much Production Do You Need?

Small-batch fashion customization and high-volume denim production can require very different machine configurations.

Do You Need Cutting?

If you only need surface effects, the system can be optimized for high-speed engraving and fading.

If you also need perforation or cutting, the laser power and motion system should be selected accordingly.

Do You Need Automation?

For higher production volumes, consider:

• Conveyor feeding
• Shuttle table
• Vision positioning
• Projection positioning
• Automatic loading
• Automatic unloading
• Production-line integration

Get a Custom Denim Laser Engraving Machine

There is no single configuration that is suitable for every denim laser processing application.The right machine depends on the garment size, denim material, desired effect, working area, laser power, production speed and automation requirements.ZS Machinery can customize an industrial CO₂ denim laser engraving, marking and cutting system according to your production process.Send us:

• Your denim product
• Garment dimensions
• Desired laser effects
• Processing area
• Cutting requirements
• Daily production volume
• Automation requirements
• Photos or videos of your current process

We can evaluate your application and recommend a suitable laser power, working area, scanning system, table configuration and automation solution.

Send us your denim samples and target effects for a laser test and customized machine recommendation.
