The Vision CO2 Laser Marking Machine from ZS Machinery is designed for high-efficiency marking on non-metal materials with automatic positioning capability.

By integrating a CO2 laser source with a high-precision vision recognition system, the machine can automatically detect the position and orientation of workpieces and complete marking without manual alignment or fixtures.

Compared with traditional CO2 laser marking machines, this system significantly improves efficiency and flexibility, especially in batch production where products are randomly placed or irregularly arranged.

Vision CO2 Laser Marking Machine

How the Vision CO2 System Works

The system combines a CCD vision camera, intelligent positioning software, and a CO2 laser source into a unified workflow.

Workpieces are placed on the working platform or conveyor without strict positioning. The vision system captures images in real time and analyzes feature points such as edges, contours, or predefined marks.

Once the system identifies the correct position, it automatically adjusts the marking coordinates and triggers the laser to perform precise marking.

This process eliminates the need for manual alignment, fixtures, or repeated adjustments, ensuring consistent results even when products are placed at different angles.

Key Advantages of ZS Machinery Vision CO2 System

High Flexibility for Non-Metal Products

The CO2 laser wavelength is ideal for materials such as wood, acrylic, leather, paper, and plastics.

With the addition of the vision system, products can be placed freely without worrying about orientation, which is especially useful for irregular or soft materials that are difficult to fix.

No Fixture Required

Traditional marking requires customized fixtures to ensure positioning accuracy.

ZS Machinery vision systems eliminate this requirement by using automatic image recognition, reducing setup time and saving fixture costs, especially in multi-product production environments.

Improved Production Efficiency

Operators only need to place products within the working area.

The system automatically detects, positions, and marks each item, reducing manual intervention and significantly increasing throughput compared to manual alignment processes.

Stable and Consistent Marking Quality

Even when products are slightly tilted or shifted, the system maintains high positioning accuracy.

This ensures uniform marking results across batches, which is critical for branding, packaging, and product identification.

Intelligent Software System

The marking software supports template storage and quick switching between different product types.

It can store multiple marking patterns and automatically call the correct program, making it suitable for flexible production lines with frequent product changes.

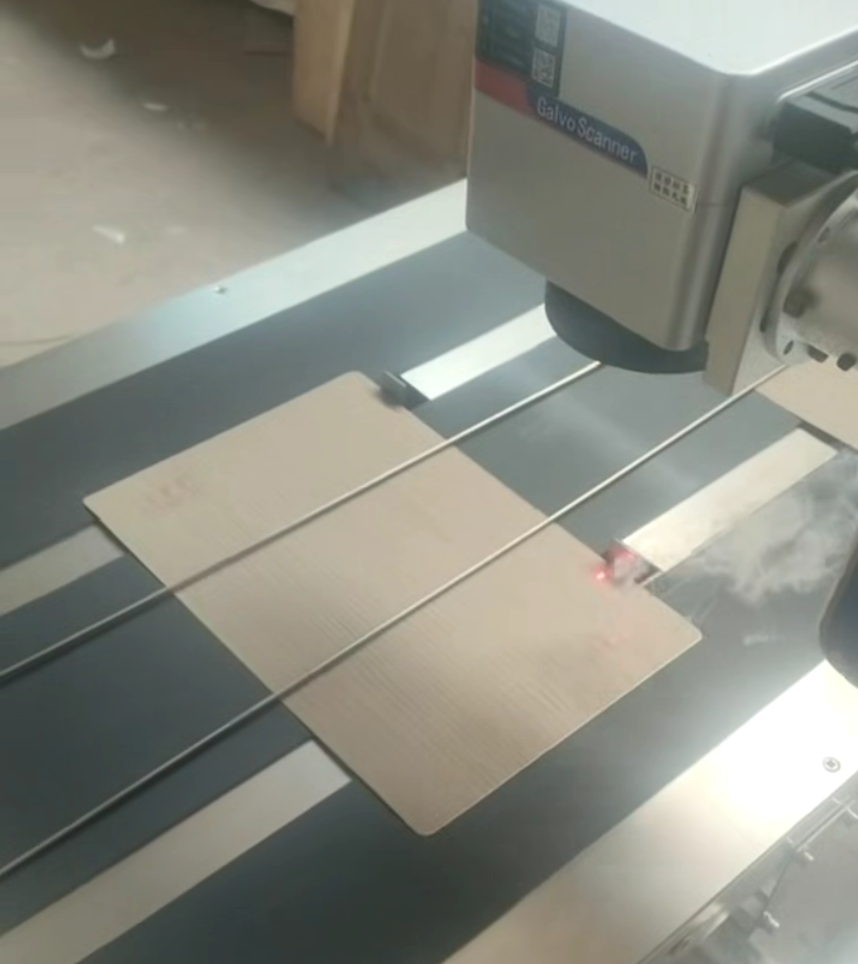

Visual CO2 Laser Marking On Paper

Difference Between Vision CO2 and Vision Fiber Laser

While both systems use vision positioning technology, their applications are fundamentally different.

Vision fiber laser marking machines are designed for metals such as stainless steel, aluminum, and brass.

Vision CO2 laser marking machines are specifically developed for non-metal materials such as wood, paper, leather, and acrylic.

In addition, CO2 lasers produce a thermal reaction on organic materials, resulting in better contrast and visual effects, which makes them more suitable for packaging, decoration, and branding applications.

Application Scenarios

The Vision CO₂ Laser Marking Machine is specifically designed for non-metal materials that respond well to thermal processing, such as organic materials and certain plastics. It is especially suitable for applications requiring fast marking, large-area processing, and flexible positioning.

Paper & Packaging Industry

Widely used for marking on:

Paper boxes, cartons, and corrugated packaging

Labels, coated paper, and packaging films

Typical markings: logos, production dates, batch numbers, QR codes

CO₂ laser provides high-speed marking with clear contrast on paper-based materials, making it ideal for packaging lines.

Leather & Textile Industry

Suitable for engraving and marking on:

Genuine leather and synthetic leather

Fabric, denim, and textile materials

Shoes, bags, and garment accessories

Typical applications: logo engraving, pattern cutting, branding marks

CO₂ laser creates clean, permanent marks without ink, widely used in fashion and footwear manufacturing.

Wood & Bamboo Products

Perfect for processing:

Wooden crafts and gift items

Furniture components

Bamboo products and MDF boards

Typical applications: logos, decorative patterns, branding

Produces natural contrast engraving effects, highly valued in decorative and customized products.

Acrylic & Transparent Materials

Applicable to:

Acrylic (PMMA) sheets

Display stands and signage

Typical applications: logos, text, and graphic engraving

CO₂ laser delivers smooth engraving edges and frosted visual effects, ideal for display and advertising industries.

Organic & Composite Materials

Used for marking on:

Rubber products

Paper-based composites

Certain coated or painted surfaces

Suitable for applications where surface removal or contrast marking is required.

About Plastic Materials

CO₂ laser can process some plastics, but it is material-dependent:

Works well on:

Acrylic (PMMA)

Some ABS / PVC / coated plastics

Not ideal for:

High-precision or heat-sensitive plastics

Applications requiring ultra-fine, non-thermal marking

In such cases, UV laser marking machines are usually a better choice due to minimal heat impact.

Technical Capabilities

ZS Machinery vision CO2 laser marking machines can be configured based on production requirements.

Laser power can be selected according to marking depth and speed requirements

Marking area can be customized depending on product size

Vision system resolution and positioning accuracy can be adjusted for different precision needs

The system can be integrated with conveyors for semi-automatic or fully automatic production

Customization Options

ZS Machinery provides flexible customization to match different industrial environments.

Conveyor systems can be added for automated workflows

Multi-station designs can be configured for higher productivity

Vision systems can be upgraded for higher precision or larger detection areas

Full system integration with existing production lines is available

Each solution is designed based on the customer’s materials, product shape, and production capacity requirements.

Call to Action

If your production involves non-metal materials and requires both flexibility and efficiency, the Vision CO2 Laser Marking Machine from ZS Machinery is a reliable solution.

Share your product details, materials, and production requirements with us. We will recommend the most suitable configuration and provide sample testing to ensure the marking quality meets your expectations.
